Now available is the programmable HCS3600-USB series with 16V/60A, 32V/30A or 60V/15A output and USB port control for QC testing, battery charging and simulation, control applications including research and product development. Can also be used for speed control of DC motors and in applications as diverse as electroplating, pulse electrodeposition (PED), crystal growth and thermal analysis! Use the HCS computer programme provided on CDROM to sequence through 20 voltage/current operations whilst logging the output voltage and current data or write your own software (for Windows, Linux or Mac OSX) or use third-party software such as LabView for unlimited steps and completely automated applications! Source-code example programs provided in VisualBASIC and VBA (Visual Basic for Applications) for Microsoft Excel and Word. See the HCS Command Set. Also available, with USB ports, are the HCS3300 series with 16V/30A or 32V/15A output and the HCS3100 series with 36V/5A or 60V/2.5A output. The HCS3400-USB power supply 16V/40A is now in stock!

NEW! Firmware version 3.1 and above now has isolated USB ports and enhanced command set with calibration mode. Also iPad and Android Apps are now available for control of your HCS-USB power supply using Raspberry Pi via WiFi!

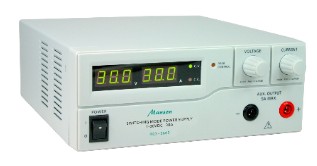

HCS3600 series (above left)
The NEW state-of-the-art 'Manson' HCS3600 series provides a true high-current laboratory power supply with many advanced features including; small size (200x90x275mm) and weight (3.5Kg), a quiet fan with speed control, rotary encoder voltage and current controls with course and fine adjustment, three user defined presets (P1, P2, P3) , remote control of voltage and current (0-5V or pot) and a remote on/off control. Most significantly, it provides automatic cross-over between constant voltage (CV) and constant current (CC) modes with LED indication! The HCS3600 model provides 1 to 16VDC at 60A and has remote voltage sensing capability (to compensate for voltage drop in cables). The HCS3602 provides 1 to 32VDC at 30A and the HCS3604 provides 1 to 60VDC at 15A. Current overload (OLP), over temperature (OTP) and over voltage protection (OVP) are provided. All HCS power supplies come with an 'Electrical Performance Test Report' to certify that the unit has passed all test parameters. This state-of-the-art power supply has many servicing, research, education, laboratory and industrial applications in many diverse fields such as telecommunications and railway workshops. With microprocessor control it features an advanced power-on test sequence, fine and course voltage and current adjustment, tracking Over Voltage Protection (OVP) and is capable of setting the current limit with no load or short-circuit required! Also available are the HCS3300 and the HCS3400 series. For the electroplating industry we now offer the AHR Range.

SPS9600 series (above centre)
The 'Manson' SPS9600 (M8222, Q1775, SPS-1560, 1693) model provides 1V to 15VDC at 60A (66A max) current-limited output! Features digital meters, remote voltage sensing and a remote voltage control input using 0-5 volts or a 5K potentiometer - with remote on/off control - ideal for automated testing (remote shutdown or programmed voltages) or selecting a fixed voltage e.g. 13.8V. OLP, OTP and OVP provided. Dimensions 220x110x360mm + 35mm for rear terminals (8.7x4.3x14.2") and weighs 5Kg (11lb) or 5.6Kg (12.4lb) in box. Specifications: Load regulation: 0.1% + 5mV, Line regulation: 0.05% + 3mV, Ripple: 15mV RMS (40mV p-p), Efficiency: >85%, Active PFC: >0.95 This power supply can be used for testing, repairing and running 12V/13.8V equipment such as automotive headlights, inverters, motors etc. And for battery charging. We fit a trim pot into the remote plug providing a preset 13.8VDC output when 'remote control' (on the rear) is switched ON.

The SPS-9602 model with 1-30V 30A output is now stocked with a preset of 27.6V.

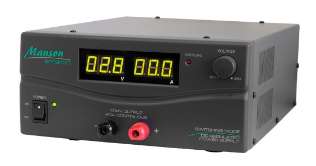

SPS9400 series (above right)
The SPS9400 (MP-3090) 'Manson', 'DOSS' or 'Electro' laboratory or bench top power supply provides a high current output in a light weight package at a reasonable price. The switch-mode power supply provides regulated 3V to 15VDC 40A output. Dimensions 220x110x300mm (8.7x4.3x11.8") and weighs 3.5Kg (7.7lb) Specifications: Load regulation (0-20A): 200mV, Line regulation: 50mV, Ripple: 50mV p-p, Efficiency: >78%, Active PFC: >0.95 Features digital voltage and current meters, voltage adjustment, 2 screw terminals (+'ve and -'ve) which accept 4mm banana plugs. This model can be used to charge 12 Volt batteries and for powering 13.8V systems. The unit can be fixed at 13.8V by a recessed switch underneath the power supply. The SPS-8400 model with analogue meters is no longer stocked, we recommend the SPS-9400 or the HCS3400 model. The SPS-9402 model (or Q1765) with 3-30V 20A output is no longer stocked, we recommend the HCS3402 model. The SPS-9250 model with 3-15V 25A output is no longer stocked, we recommend the HCS-3300 model or, if you require a fixed 13.8V, we recommend the SPA-8330 model.

Payment and delivery?
Payment may be made by Direct Deposit to our account. AUD$ prices are Australian dollars. Note, these are EXPORT prices. For delivery within Australia please add 10% GST (use +GST column). For an order form that you can print out and email to us - click here.

Delivery charge within Australia $11 for < 500g, $16.50 for HCS, SPA supplies (all except SPS). For SPS/AHR units - P.O.A. (ask us). Delivery to overseas destinations P.O.A (ask us). EX-GST purchases may only be made when the delivery address is outside of Australia. i.e. for EXPORT orders. Prices subject to change without notice.
