Procon Technology has searched all over for these value-for-money power supplies adapters. Please see prices below and email us regarding your quantity requirements or special application.
In Australia, call 03-98306288 now to buy! OEM, wholesale and quantity discounts are available.
Meanwell, also provide industrial power supplies from 15W to 30000W, Battery Chargers (including UPS), DC-DC Converters, DC-AC Inverters and LED Power Supplies and Medical Approved Power Supplies!
NGE range (above centre) - NEW!
The 'Meanwell' NGE range of 'plugpack' power supplies or travel adapters, with 'optional' interchangeable plugs for use world-wide, provide 12, 18, 30, 45, 65 and 90W of DC power in voltages 5V, 9V, 12V, 15V, 18V, 24V and 48V.
The new 90W unit is also available in 55V for PoE applications.
This "Green" range of power supplies is MEPS approved and meets the EISA 2007 (Energy Independence and Security Act) level VI. All have C-tick approval and Electrical Safety Approval*.
They are also approved for medical use. All units operate on 90V to 240VAC input (50Hz or 60Hz) and provide an output on a 1m+ lead terminated in a standard 2.1mm DC plug. The NGE1205 is also available a with USB port output.
All come with a 3 year warranty. Australian plug provided... the others are optional.
GST range (above right)
The 'Meanwell' GST range replaces the GS range of 'laptop style' mains adapters provide 18, 25, 36, 40, 60, 90, 120, 160, 220, 280 or 360 Watts of DC power in voltages from 5V to 55V.
This "Green" range of power supplies is MEPS approved and meets the EISA 2007 (Energy Independence and Security Act). All have C-tick and Electrical Safety Approval*.
They have fully-enclosed 94V-0 flame retardant plastic casings (no 'dangerous' vents), IEC AC input and over temperature protection (60W and over), LED power-on indicator and a 1m long lead with 5.5mm DC plug - except when more than 120W where 4 or 6 pin plugs are used.
The GST120 replaces the AS-120P.
All units operate on 100V to 240VAC 50Hz or 60Hz and have excellent MTBF (Mean Time Between Failure) rates. e.g. the MTBF of the GST25, GST40 and GST60 is over 600,000 hours!
Now available... new GST range with higher energy saving (level VI), higher temperature (-30°C to 70°C on all models) and 3 year warranty! For more information - click here.
| PRICE LIST.........current until 30th September, 2024 | . | . | . |
| UNIVERSAL MAINS ADAPTERS... NEW! NGE adapters! | AUD$ | +GST | NOTE |
| NGE12I-v, 12W SMPS v = 5V,9V,12V,15V,18V,24V..... pdf | $45.00 | $49.50 | new! |
| NGE18I-v, 18W SMPS v = 5V,9V,12V,15V,18V,24V | $50.00 | $55.00 | new! |
| NGE30I-v, 30W SMPS v = 5V,9V,12V,15V,18V,24V,48V | $60.00 | $66.00 | new! |
| NGE45I-v, 45W SMPS v = 5V,9V,12V,15V,18V,24V,48V | $63.00 | $69.60 | new! |
| NGE65I-v, 65W SMPS v = 5V,9V,12V,15V,18V,24V,48V | $70.00 | $77.00 | new! |
| NGE90I-v, 90W SMPS v = 12V,15V,18V,24V,48V,55V | $90.00 | $99.00 | new! |
| NGE100, 100W GaN Fast Charger 4 x USB ports............. pdf | $160.00 | $176.00 | new! |
| GE12I-v, 12W SMPS v = 5, 7.5, 9, 12, 15, 18, 24V.......... pdf | $36.00 | $39.60 | note |
| GE18I-v, 18W SMPS v = 5, 7.5, 9, 12, 15, 18, 24, 48V | $44.00 | $48.40 | . |
| GE24I-v, 24W SMPS v = 5, 7.5, 9, 12, 15, 18, 24, 48V | $45.00 | $49.50 | . |
| GE30I-v, 30W SMPS v = 12V, 15V, 18V, 24V | $50.00 | $55.00 | . |
| GE40I-v, 40W SMPS v = 5, 7.5, 9, 12, 15, 18, 24, 36V, 48V | $60.00 | $66.00 | note |
| TRIPLE OUTPUT MAINS ADAPTERS | AUD$ | +GST | NOTE |
| GP25An, 25W triple +/-5V, +/-12V, +/-15V, +/-16V, +48V | $100.00 | $110.00 | note |
| GP25Bn, 25W triple +/-5V, +/-12V, +/-15V, +/-16V, +48V | $100.00 | $110.00 | note |
| GP50An, 50W triple +/-5V, +/-12V, +/-15V, +/-16V. +48V | $140.00 | $154.00 | note |
| MAINS ADAPTERS with IEC input.............................. pdf | AUD$ | +GST | NOTE |
| GST18A-v, 18W SMPS v = 5, 7.5, 9, 12, 15, 18, 24, 28, 48V | $40.00 | $44.00 | . |
| GST25A-v, 25W SMPS v = 5, 7.5, 9, 12, 15, 18, 24, 28, 48V | $42.00 | $46.20 | . |
| GST40A-v, 40W SMPS v = 5, 7.5, 9, 12, 15, 18, 24, 48V | $60.00 | $66.00 | . |
| GST60A-v, 60W SMPS v = 5, 7.5, 9, 12, 15, 18, 24, 48, 54V | $70.00 | $77.00 | note |
| GST90A-v, 90W SMPS v = 12V, 15V, 19V, 24V, 48V | $90.00 | $99.00 | . |
| GST120A-v, 120W SMPS v = 12V, 15V, 20V, 24V, 48V | $110.00 | $121.00 | . |
| GST160A-v, 160W SMPS v = 12V, 15V, 20V, 24V, 36V, 48V | $120.00 | $132.00 | note |
| GST220A-v, 220W SMPS v = 12V, 15V, 20V, 24V, 36V, 48V | $180.00 | $198.00 | . |
| GST280A-v, 280W SMPS v = 12V, 15V, 20V, 24V, 48V | $210.00 | $231.00 | . |
| GST360B-v, 360W SMPS v = 12V, 15V, 24V, 36V, 48V, 55V | $300.00 | $330.00 | new! |
| OTHER ITEMS (IEC LEADS) | AUD$ | +GST | NOTE |
| PA3706, 2.1mm to 2.5mm Adapter GE, NGE, GST18/25/40/60 | $3.00 | $3.30 | |
| R7BF-P1J, R7B to 2.1mm Adapter for GST120-GST220 | $5.00 | $5.50 | . |
| R7BF-P1M, R7B to 2.5mm Adapter for GST120-GST220 | $5.00 | $5.50 | . |

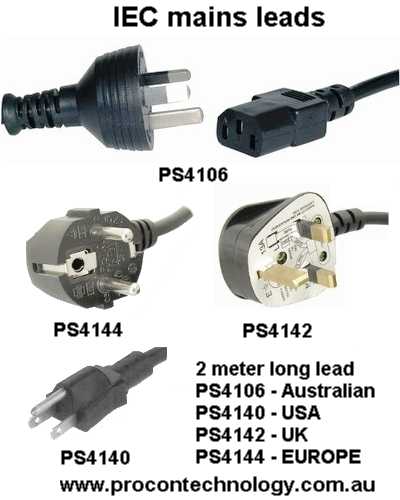

| PS-4100, IEC 0.6m mains lead... Australian/New Zealand plug | $6.00 | $6.60 | . |

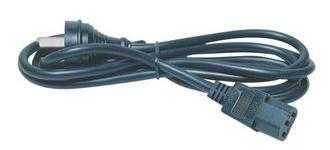

| PS-4106, IEC 1.8m mains lead... Australian/New Zealand plug | $9.00 | $9.90 | . |
| PS-4140, IEC 1.8m mains lead... USA/Canadian plug | $15.00 | $16.50 | . |
| PS-4142, IEC 1.8m mains lead... UK/HK/Singapore/Malaysia | $15.00 | $16.50 | . |
| PS-4144, IEC 1.8m mains lead... European/German plug | $6.00 | $6.60 | 4 only |
Click here to go to MeanWell Battery Chargers.
Payment and delivery?
Payment may be made by Direct Deposit to our account. AUD$ prices are Australian dollars.
Note, these are EXPORT prices. For delivery within Australia please add 10% GST (use +GST column).
For an order form that you can print out and email to us - click here.
Delivery charge within Australia $11 (trade & express bag orders - $16.50). More for discounted orders or large orders to WA, NT and remote QLD. Delivery to overseas destinations - P.O.A. (ask us). EX-GST purchases may only be made when the delivery address is outside of Australia. i.e. for EXPORT orders. Prices subject to change without notice.
Operational tips:
1. Carefully check the voltage of your appliance before connecting and DO NOT switch on until you have also checked the following: (a) Check current requirement (the power supply should always have more current output than the device requires). (b) check the connection required (e.g. the plug type) and (c) the polarity. i.e. positive or negative connections.
CUSTOMER COMMENT:
'Kingray (GME) amplifiers (terrestrial and satellite) and modulators are using 12V or 18V power supplies with 2.5mm DC connector. These are Australian made and very good... but their power supplies are seriously bad.'
Procon Technology now stocks the GST18A and GST25A in 5V, 7.5V, 9V, 12V, 15V, 18V, 24V, 28V, 48VDC and can provide a 2.5mm adapter to solve this problem with Australian TV antenna and satellite distribution systems! The NEW GST range provides an ideal adapter for use in roof spaces, garages and sheds etc. where low and high temperatures are experienced!
WARNING! Regarding some 'low-cost', 'no-name' switched mode plug packs and in-line or laptop style power supplies. One was returned (which we no longer sell) with the components inside melted due to high temperatures. Some of these 'cheap' plug packs have a maximum temperature of 35°C (for Australian conditions?), a voltage tolerance of +/-8% and MTBF (Mean Time Between Failure) of only 30,000 Hours!
It's hard to even get this data from 'no-name' manufacturers or 'who knows where they're manufactured' suppliers but Meanwell provide the most comprehensive data you'll find!
The Meanwell plug packs have an upper temperature limit of 50 to 70°C (with derating)*, a voltage tolerance of +/-5% (down to 2% for higher voltages) and a MTBF of up to 711,000 hours.
e.g. The Meanwell GS range of in-line power supplies over 90 Watt have OTP (Over Temperature Protection), active PFC (Power Factor Correction), a fully enclosed plastic cases without fans (spill a cup of coffee on a 'cheap' unit and watch the sparks fly) and the highest MTBF (Mean Time Between Failure) in the industry!
AND, as with most Meanwell adapters, it uses an IEC320-C14 3 pole mains inlet with removable lead (that's the same power lead used on most computers) which allows the lead to be replaced easily if damaged or changed if using it overseas!
So ... which make of power supply will you buy?
*for 70°C operation at 240VAC (with derating above 40-50°C) see the GST range. "WARNING", we cannot stress enough how important it is to buy a power adapter that complies with Australian electrical authority regulations. All adapters have Australian Electrical Safety Approval which means they are approved for use in all Australian States and New Zealand. You wonder why it costs more for these power adapters? It costs up to $10,000 for electrical authority approval !! We cannot emphasis enough how important this issue is - click here.
Some FAKE Meanwell power supplies have also been sold by overseas suppliers - BEWARE! Always purchase from an authorised Australian Supplier!
What is MEPS?
MEPS (Minimum Energy Performance Standards) is a mandatory Australian and New Zealand Government initiative effective from December 1, 2008 (implementation date in Australia), to eliminate low efficiency external power adapters from the market and encourage the use of high efficiency power supplies (performance MARK V or VI). Many of the existing plug packs on the market today will not comply with the new AS/NZS 4665-2005 standards.
Also called GEMS (Greenhouse and Energy Minimum Standards). For more information - click here.
Disclaimer: The above specifications are subject to change without notice. Please ensure the suitability of these products for your application before purchase.
